Superior Ultra Clear Water.

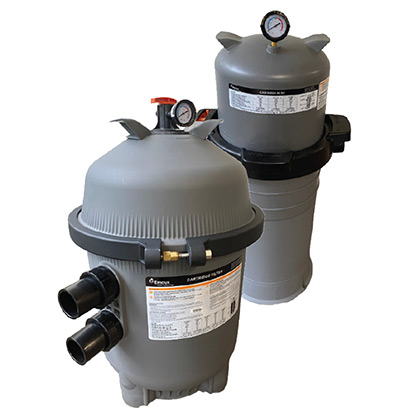

Eco Friendly Galaxy Single and Multi-Element Cartridge Filters.
| Features |
|---|
| Robust UV Resistant Tank |
| Smart Indicative Pressure Gauge |
| Easy Access Lid Assembly |
| Air Relief Valve |
| Quick Release Couplings |
| 12 Month Warranty on All Components |
| 2 Year Pro-Rata Warranty on Filter Tank |
| Warranty |
|---|
| 12 Month Warranty on All Components |
| Single Element Cartridge Filters | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | |||||||||||
| Model | Filter Area (ft2) |
Filter Area (m2) |
Max Flow Rate (lpm) |
Max Flow Rate (M3/H) |
Max Pool Size | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
| GCF100 | 100 | 9.29 | 379 | 22.7 | 45,000L | 825 | 444.5 | 588 | 304 | 335 | 91 |
| GCF150 | 150 | 13.94 | 454 | 27.2 | 65,000L | 910 | 444.5 | 588 | 304 | 335 | 91 |
| GCF200 | 200 | 18.58 | 454 | 27.2 | 90,000L | 1033 | 444.5 | 588 | 304 | 335 | 91 |
| Multi Element Cartridge Filters | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | |||||||||||
| Model | Filter Area (ft2) |
Filter Area (m2) |
Max Flow Rate (lpm) |
Max Flow Rate (M3/H) |
Max Pool Size | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
| GCF330 | 330 | 30.66 | 468 | 28.1 | 120,000L | 886 | 648 | 556 | 504 | 462 | 317.5 |
| GCF530 | 530 | 49.24 | 568 | 34.1 | 150,000L | 1223 | 648 | 556 | 504 | 462 | 317.5 |
