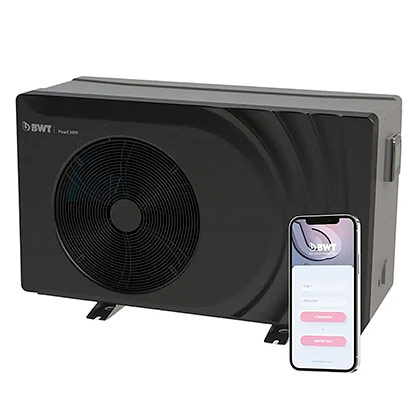

Intelligent inverter heating and cooling with touchscreen and Wi-Fi control.
| Features & Benefits |
|---|
| Inverter technology with Boost, Smart and Eco operating modes |
| Colour touchscreen with heating, cooling and automatic modes |
| BWT Connect Wi-Fi control included |
| Variable-speed compressor and brushless fan |
| Titanium heat exchanger in PVC housing |
| UV-treated ABS casing and R32 refrigerant |
| Specifications | |
|---|---|
| Models | HPF 13 / HPF 20 / HPF 27 |
| Recommended pool sizes | 55 - 70 / 85 - 105 / 130 - 160 m³ respectively; November to March with a cover |
| Maximum heating capacity - air 26°C, water 26°C, 80% RH | 13.1 / 20.4 / 27.8 kW |
| COP at maximum output - same conditions | 5.6 / 5.2 / 5.2 |
| Maximum heating capacity - air 15°C, water 26°C, 70% RH | 9.8 / 14.8 / 22.8 kW |
| COP at maximum output - same conditions | 4.7 / 4.5 / 4.2 |
| Noise at 10 m | 23 - 28 / 25 - 30 / 26 - 32 dB(A) |
| Operating temperature (specification table) | -15°C to +38°C |
| Water connection | 40 mm / 1.5 inch |
| Power supply | 230 V, single phase + neutral, 50 Hz |
| Nominal current (maximum) | 8.3 A (12 A) / 14.3 A (16 A) / 28.0 A (30 A) |
| Water flow | 4 / 6 / 10 m³/h |
| Dimensions (L x W x H) | HPF 13: 980 x 419 x 584 mm HPF 20: 1080 x 479 x 707 mm HPF 27: 1178 x 525 x 569 mm |
| Net weight | 48 / 63 / 94 kg |
| Warranty | 25 years on titanium heat-exchanger components and 10 years on compressor for the original purchaser only. Standard heat-exchanger and compressor warranty: 5 years. Parts: 5 years. On-site labour: 1 year. Incorrect water chemistry damage is excluded. |
