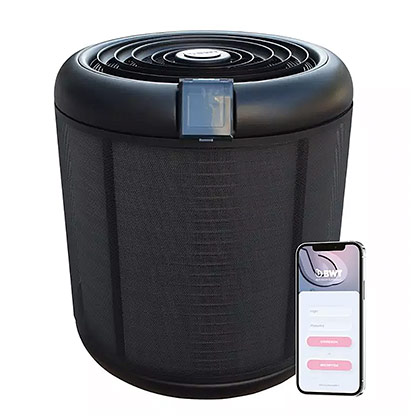

BWT Pearl HPT Top Discharge
Inverter Heat Pumps
Intelligent inverter heating and cooling with touchscreen and Wi-Fi control.
| Features & Benefits |
|---|
| Inverter technology with Boost, Smart and Eco operating modes |
| Colour touchscreen with heating, cooling and automatic modes |
| BWT Connect Wi-Fi control included |
| Variable-speed compressor and brushless fan |
| Titanium heat exchanger in PVC housing |
| UV-treated ABS casing and R32 refrigerant |
| Specifications |
|---|
| Models | HPT 12 / HPT 18 |
| Recommended pool sizes | 45 - 65 / 70 - 85 m³ respectively; November to March with a cover |
| Maximum heating capacity - air 26°C, water 26°C, 80% RH | 12.8 / 18.2 kW |
| COP at maximum output - same conditions | 6.2 / 6.2 |
| Maximum heating capacity - air 15°C, water 26°C, 70% RH | 9.1 / 12.7 kW |
| COP at maximum output - same conditions | 4.6 / 4.6 |
| Noise at 10 m | 20 - 29 / 22 - 31 dB(A) |
| Operating temperature (specification table) | -10°C to +38°C |
| Water connection | 40 mm / 1.5 inch |
| Power supply | 230 V, single phase + neutral, 50 Hz |
| Nominal current (maximum) | 7.9 A (13 A) / 11.5 A (16 A) |
| Water flow | 4 / 5 m³/h |
| Dimensions | 680 mm diameter x 775 mm high |
| Net weight | 47 / 57 kg |
| Warranty | 25 years on titanium heat-exchanger components and 10 years on compressor for the original purchaser only. Standard heat-exchanger and compressor warranty: 5 years. Parts: 5 years. On-site labour: 1 year. Incorrect water chemistry damage is excluded. |
