0.5HP - 3.0HP
High Reliability

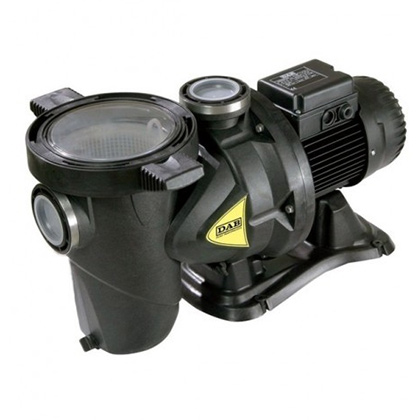

Self-priming centrifugal high performance electric pumps with incorporated high capacity pre-filter. Completely watertight motor.
Extremely silent and highly reliable, developed for the circulation and filtration of water in domestic and residential swimming pools.
Features |
---|
Efficiency High performance with low energy consumption |
Very Quiet (60 DBA) Silent running |
Reliability Corrosion resistant materials for a long life even at extreme conditions (+ 60° ambient temperature) |
Simplicity Easy-to-open transparent cover for quick cleaning of the filter |
Design This innovative solution combines aesthetics with sturdy materials highly resistant to corrosion and oxidation. |
Hydraulic components All components in contact with the liquid are made in polypropylene or noryl with glass fiber. High efficiency impeller with special design to cover and protect motor shaft against corrosion (motor is completely insulated) |
Anti-vibration feet The supporting base guarantees stability with integrated rubber feet that reduce vibrations. |
Terminal board box Easy and fast line connection, totally closed against the motor to avoid any accidental solid particle entry. |
Quick and easy connection In & out connection female, threaded 2”. Optional on request: special 3 piece adjustment 50/63 mm. |
Large prefilter It has a large canister, up to 6 litres. Motor (suitable up to 60°) a trasparent lid that can be removed without tools, and an internal filter easy to take out and clean. |
Motor All metallic components are surface treated. Suitable for working in a high temperature environment (up to 50°c). With exhaust condensate holes. Capacitor is internal in the terminal board box. Water proof bearings. |

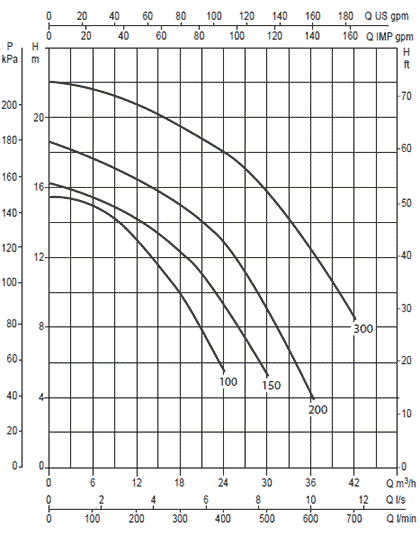

Performance |
---|
SPECIFICATIONS | |
---|---|
Model | HP |
Euroswim 50 | 0.5 |
Euroswim 75 | 0.75 |
Euroswim 100 | 1 |
Euroswim 150 | 1.5 |
Euroswim 200 | 2 |
Euroswim 300 | 3 |
