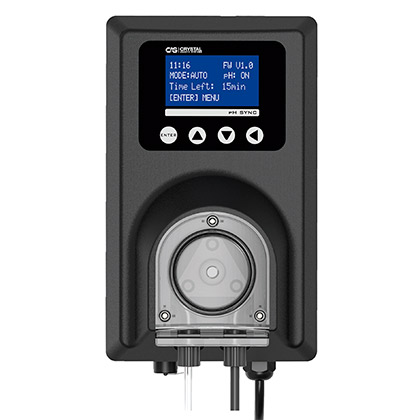

pH Sync

Optimise the effectiveness of your sanitiser by automatically maintaining perfect ph balance in your pool.

Easy to use LCD display for setting pool volume and acid dosing.

Automatically doses and maintains safe pH/acid levels.

Protects the pool surface and pool equipment from scale and corrosion.

Prevents pH from fluctuating in and out of balance.

Strong & durable commercial grade peristaltic tube and roller.

No probe or calibration required.

Never overdose your pool with acid again.

Compatible with all types of pools and sanitising systems.

Features
pH SYNC is a perfect companion for salt & mineral sanitising systems.
Compatible with any pool sanitiser Suitable for all pool surfaces.
Works with any high and low flow filtration systems.
Simple to operate.
Easy installation - plug and play.
Uses a proven acid dosing pump technology.
Commercial grade squeeze tube Commercial grade motor.

Specifications
Volts Input (Vac)	220-240
Amps Input - Max. (Aac)	1.00
Power Consumption (W)	13W Motor - 20W Total
13W Motor - 20W Total	50
Controller Dimensions (mm)	135W x 225H x 123D
135W x 225H x 123D	0 - 1.0
Rated Pressure (kPa)	350
Squeeze Tube	Tygon Norprene (Commercial)
Pump Inspection Window	Clear Acrylic Window
Motor Speed (RPM)	10
Non-Return Injector Valve	Polypropylene Injector
Tubing	6m x 6mm Clear Flexible PVC
Roller Block	Heavy-duty Glass filled Nylon
Casing Material	Glass Filled Polypropylene
Power Cord	Approved Piggy-back type
Wall Mounting	Click ON - Clip OFF Bracket
Water Connection Fitting	Clear Acrylic fits 40/50mm pipe
Water Flow Rate (L/min)	80-650
Ingress Protection Rating	IP35
Unit Shipping Dimensions (mm)	240W x 160H x 240D
Net Weight (kg)	2.5

One Year Warranty*
On control unit and POD materials, all fittings, tubing and sensor.
