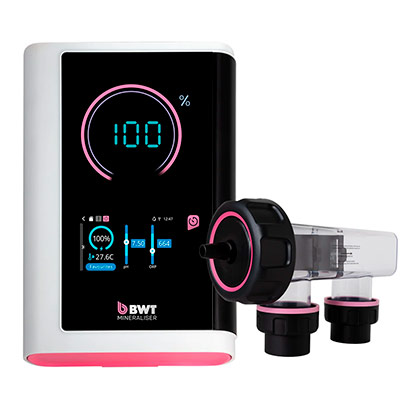

BWT Diamond Mineraliser
Salt & Mineral Chlorinator
Pool automation and sanitisation in one premium, connected system.
| Features & Benefits |
|---|
| Touchscreen control and smartphone connectivity via the BWT Diamond Mineraliser app |
| Self-cleaning, long-life cell |
| Super-chlorinate, pool and spa modes |
| Salt level alert, water flow and water temperature indicators |
| Automatic power reduction when salt or mineral levels are too high |
| Run-dry pump protection and super capacitor timer backup |
| Optional Diamond Dose provides pH dosing and optional ORP control |
| Connect up to three optional Diamond Hubs for expanded equipment control |
| Specifications |
|---|
| Salt concentration range | 3500 - 7000 ppm |
| Ideal salt level | 4000 ppm |
| Control box protection | IP45 |
| Diamond 15 | 15 g/hr - pools up to 30,000 L |
| Diamond 20 | 20 g/hr - pools up to 40,000 L |
| Diamond 25 | 25 g/hr - pools up to 50,000 L |
| Diamond 30 | 30 g/hr - pools up to 60,000 L |
| Diamond 35 | 35 g/hr - pools up to 70,000 L |
| Diamond 50 | 50 g/hr - pools up to 100,000 L |
| Diamond 75 | 75 g/hr - pools up to 150,000 L |
| Diamond 100 | 100 g/hr - pools up to 200,000 L |
| Warranty | 5-year warranty on Diamond Mineraliser and cell; brochure states 12,000-hour / 5-year electrode warranty. Terms and conditions apply. |
