V-lock sets the new standard for safe 8' concealed skimmer box access.
V-LOCK’s unique locking system provides superior safety for pool owners, and simplifies Australian standards compliance for pool builders.
The flush-fitting lid is easy to install and blends into the pool surrounds for a flawless finish every time. With a range of models to choose from, V-LOCK is the perfect solution to suit tile, stone and timber deck finishes.
Manufactured using advanced engineering polymers, V-LOCK delivers superior strength, rigidity and weatherability without the need for electrical bonding!
| Features |
|---|
| Safe & Secure Lockable lid sets the new standard for safety and peace of mind. |
| Smart Design The V-LOCK Lid kit includes a spacer plate and adhesive for simple installation of all styles of tiling, paving and decking. |
| Durable Reinforced polymer construction for superior rigidity, strength and weatherability. |
| Seamless Finish Available in a range of depths to suit tile, stone and timber inlays. |
| No Bonding V-LOCK’s advanced polymer construction eliminates the need for electrical bonding. |
| Specifications | |||
|---|---|---|---|
| Model | Inlay Thickness | Internal Lid Depth | Part No. |
| V10 | 8-11 mm | 12mm | 475-201 |
| V15 | 12-16 mm | 18mm | 475-203 |
| V20 | 15-22 mm | 23mm | 475-205 |
| V30 | 25-32 mm | 33mm | 475-207 |

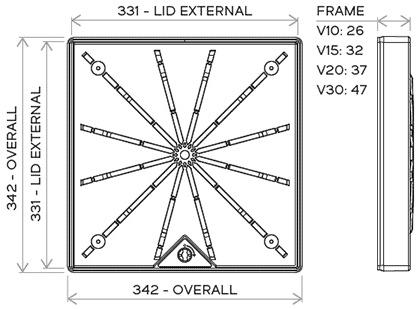

| Dimensions |
|---|
 |
