High-performance media filtration delivering clear water, easy maintenance, reliable operation, and long-lasting durability for residential swimming pools.

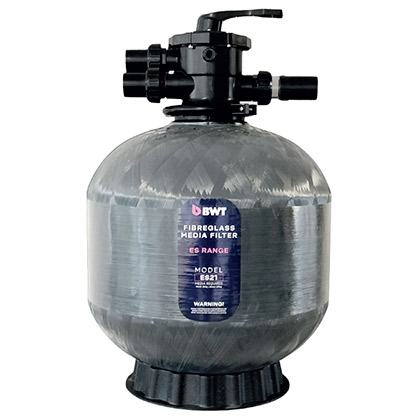

The BWT ES Series filter has been designed to be innovative and cost effective for your pool filtration system. The ES filter comes with top-mounted multiport valve, and the dual layer unique cross-winding bobbin wound thread provides a more durable and longer lasting filter tank than other similar filter types in the market.
| Features & Benefits |
|---|
| 100% factory tested according to international and Australian standards. Built with high-density fibreglass reinforced tanks with UV resistance allows the filter to work under direct sunlight. |
| Simple Multiport Valve Operation: Intuitive durable 6-way multiport valves let you switch between filter, backwash, rinse, waste, recirculate, and closed with ease. |
| Low Maintenance: Media filters require less frequent servicing than other systems and are easy to maintain. |
| Suitable for Various Pools: Works well across many residential pool sizes and is compatible with salt-chlorine systems. |
| Consistent Filtration Performance: Provides reliable water clarity and can last years with periodic backwashing and eventual media replacement. |
| Effective Dirt Removal Uses specially graded media to remove dirt and debris from pool water. |
| Continuous Automatic Filtration Water flows through the media bed, capturing particles and returning clean water to the pool in a continuous cycle. |
| Easy Backwashing Reverse flow backwashes the media, flushing trapped dirt out via the waste line for efficient cleaning. |
| Rinse Cycle After backwashing, rinsing settles the media and clears remaining debris before resuming normal filtration. |
| Warranty |
|---|
| 10 year tank warranty |
| 12 Month warranty on fittings |

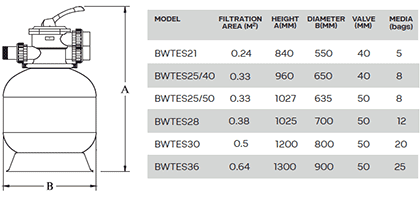

| Dimensions |
|---|
 |
| Models | |
|---|---|
| BWTES21 | BWT ESSENTIALS 21" MEDIA FILTER 40MM CLAMP MPV |
| BWTES25/40 | BWT ESSENTIALS 25" MEDIA FILTER 40MM CLAMP MPV |
| BWTES25/50 | BWT ESSENTIALS 25" MEDIA FILTER 50MM BOLT ON MPV |
| BWTES28 | BWT ESSENTIALS 28" MEDIA FILTER 50MM BOLT ON MPV |
| BWTES30 | BWT ESSENTIALS 30" MEDIA FILTER 50MM BOLT ON MPV |
| BWTES36 | BWT ESSENTIALS 36" MEDIA FILTER 50MM BOLT ON MPV |
The manufacturer reserves the right to alter specifications
